Bit-oriented Instructions

Similar to logic instructions, bit-oriented instructions perform logic operations. The difference is that these are performed upon single bits.


ANL C,bit - AND direct bit to the carry flag
C: Carry flag
 Bit: any bit of RAM

Description: Instruction performs logic AND operation between the direct bit and the carry flag.
EXAMPLE:
 ANL C,bit

Before execution: ACC= 43h (01000011 Bin.)
C=1
After execution: ACC= 43h (01000011 Bin.)
C=0

ANL C,/bit - AND complements of direct bit to the carry flag
C: carry flag
 Bit: any bit of RAM

Description: Instruction performs logic AND operation between inverted addressed bit and the carry flag. The result is stored in the carry flag.
EXAMPLE:
ANL C,/bit
Before execution: ACC= 43h (01000011 Bin.)
C=1
After execution: ACC= 43h (01000011 Bin.)
C=1

CLR C - clears the carry flag
C: Carry flag
Description: Instruction clears the carry flag.

EXAMPLE:
CLR C
After execution: C=0

CLR bit - clears the direct bit
Bit: any bit of RAM
Description: Instruction clears the specified bit.

EXAMPLE:
CLR bit
Before execution: P0.3=1 (input pin)
After execution: P0.3=0 (output pin)

CPL bit - Complements the direct bit
Bit: any bit of RAM
Description: Instruction coplements the specified bit of RAM (0==>1, 1==>0).

EXAMPLE:
CPL bit
Before execution: P0.3=1 (input pin)
After execution: P0.3=0 (output pin)

CPL C - Complements the carry flag
C: Carry flag
Description: Instruction complements the carry flag (0==>1, 1==>0).

EXAMPLE:
CPL C
Before execution: C=1
After execution: C=0

MOV bit,C - Moves the carry flag to the direct bit
C: Carry flag
 Bit: any bit of RAM

Description: Instruction moves the carry flag to the direct bit. After executing the instruction, the carry flag is not affected.

EXAMPLE:
MOV bit,C
After execution: If C=0 P1.2=0
If C=1 P1.2=1

MOV C,bit - Moves the direct bit to the carry flag
C: Carry flag
 Bit: any bit of RAM

Description: Instruction moves the direct bit to the carry flag. After executing the instruction, the bit is not affected.

EXAMPLE:
MOV C,bit
After execution: If P1.4=0 C=0
If P1.4=1 C=1

ORL C,bit - OR direct bit to the carry flag
C: Carry flag
 Bit: any bit of RAM

Description: Instruction performs logic OR operation between the direct bit and the carry flag. The result is stored in the carry flag.

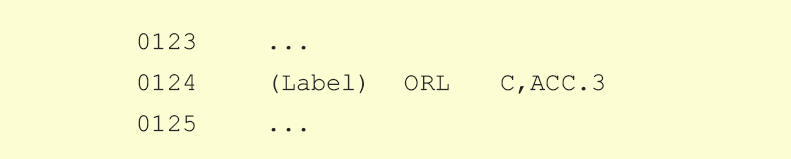

EXAMPLE:
ORL C,bit
Before execution: ACC= C6h (11001010 Bin.)
C=0
After execution: C=1

ORL C,/bit - OR complements of direct bit to the carry flag
C: carry flag
 Bit: any bit of RAM

Description: Instruction performs logic OR operation between the addressed inverted bit and the carry flag. The result is stored in the carry flag.

EXAMPLE:
ORL C,/bit

Before execution: ACC= C6h (11001010 Bin.)
C=0
After execution: C=0

SETB C - Sets the carry flag
C: Carry flag
Description: Instruction sets the carry flag.

EXAMPLE:
SETB C After execution: C=1

SETB bit - Sets the direct bit
Bit: any bit of RAM
Description: Instruction sets the specified bit. The register containing that bit must belong to the group of the so called bit addressable registers.

EXAMPLE:
SETB bit
Before execution: P0.1 = 34h (00110100)
pin 1 is configured as an output
After execution: P0.1 = 35h (00110101)
pin 1 is configured as an input
